In November, we announced the availability of our Trusted Platform Module as a $99 add-on for early adopters, something that would allow us to cover the additional parts & labor costs, as well as test the waters to see how much demand there might be for this feature. We thought there would be “some” interest in that as an option, but we were not sure how much, especially since it was clearly presented as an “early preview” and offered at extra cost.
Well, it turns out that a lot of people want this. We were pleasantly surprised to see that, with orders placed since that time, 98% of customers chose to have a TPM even at extra cost. This proved there is very strong market demand for the level of security this hardware add-on can provide.
2018’s first new batch is in stock—with TPM
Thanks to the investment of those early TPM adopters who voted with their wallets and gave us the necessary “business case” and resources to work it out, we are extremely proud to announce that we now include the TPM chip in all new Librem 13 and Librem 15 orders by default, as a standard feature of our newest hardware revision shipping out this month.
All the rest of the chip specifications remain the same.
It is still costing us money to add the TPM feature, but we decided to eat the cost, as the greater public benefit is more important than profits (and that is in line with our social purpose status and mission). Adding a TPM by default without increasing the base price is a major accomplishment toward having security by default, and paves the way for convenient security and privacy protection for everyone. In addition to the previous announcement, you can read Kyle’s post to understand the security implications.
Wait, there’s more!
We are now offering Free International Shipping on all orders. This is essentially a permanent rebate of approximately 100 USD to all new international customers! As we have grown we have been able to leverage more standardized shipping options, and are now in a position to pass on that savings to Purism customers. Please note, however, that shipping insurance, local taxes, customs fees and import duties are still your responsibility as customers.
Thanks to popular demand, we are now offering Librem 13 and Librem 15 laptops with the backlit German keyboard layout. They are available for purchase in our store now, and will begin rolling out in mid-March.
Only a few non-TPM laptops remain in stock with the UK keyboard layout, so we are making a sale today to clear out that portion of the inventory. If you were looking for a Librem 13 with the UK physical key layout and no TPM, you can grab one of the few remaining ones and get an additional $99 off the previous no-TPM base price. In other words, instead of paying $1,478 “plus shipping” for the base configuration of the Librem 13 UK, you now pay $1,379 with free shipping!
We would like to thank all our users of Librem laptops and FSF endorsedPureOS, as well as all those that have backed the Librem 5 phone, and of course all those people who support us by feedback, kind words, and spreading the word. It is with this unified education approach that we can change the future of computing and digital rights for the better.
We have more great news in the pipeline. Next month, we hope to announce another major milestone in our inventory management & shipping operations. Stay tuned!
Being at FOSDEM 2018 was a blast! We received a lot of great feedback about what we have accomplished and what we aim to achieve. These sorts of constructive critiques from our community are how we grow and thrive so thank you so much for this! It helps us to focus our development. Moreover, I was very impressed by the appreciation that we received from the free software community. I know that relationships between companies, even Social Purpose Corporations—like Purism, and the free software communities are a delicate balance. You need to find a good balance between being transparent, open, and free on one side but also having revenue to sustain the development on the other side. The positive feedback we received at FOSDEM and the appreciation that was expressed for our projects was great to hear.
We are working really hard on making ethical products, based on free/libre and open source software a reality. This is not “just a job” for anybody on the Purism staff, we all love what we do and deeply believe in the good cause we are working so hard to achieve. Your appreciation and feedback is the fuel that drives us to work on it even harder. Thank you so much!
As I mentioned before, we have the i.MX 6 QuadPlus test hardware on hand, so here are some photos of our development board actually running something:
On the right, you can see the Nitrogen board with the modem card installed. On the left is our display running a browser displaying the Purism web-page and below it a terminal window in which I started the browser. To put the resolution of the display into perspective I put a Micro SD card on the display:
The terminal window is about as big as three Micro SD cards! This makes it very clear that a lot of work has to be put into making applications usable on a high resolution screen and to make them finger friendly since the only input system we have is the touch screen. In the next picture I put an Euro coin on the screen and switched back to text console:
Concerning the software, we are working on getting the basic framework to work with the hardware we have at hand. One essential piece is the middleware that handles the mobile modem that deals with making phone calls and sending and receiving SMS text messages. For this we want to bring up oFono since it is also used by KDE Plasma mobile. We have a first success to share:
This is the first SMS sent through oFono from the iMX board and the attached modem to a regular mobile smartphone where the screenshot was taken. So we are on the right track here and have a solution that is starting to work that suits multiple possible systems, like Plasma mobile or a future GNOME/GTK+ based mobile environment.
The SMS was sent with a python script using the native oFono DBus API. First the kernel drivers for the modem had to be enabled followed by running ofonod which autodetects the modem. Next the modem must be enabled and brought online (online-modem). Once this was done sending an SMS was as simple as:
purism@pureos:~/ofono/test$ sudo ./send-sms 07XXXXXXXXX "Sent from my Librem 5 i.MX6 dev board!"
The script itself is very simple and instructive. Simulating the reception of a text message can also be done, with a command such as this one:
purism@pureos:~/ofono/test$ sudo ./receive-smsb 'Sent to my Librem 5 i.MX6 dev board!' LocalSentTime = 2018-02-07T10:26:19+0000 SentTime = 2018-02-07T10:26:19+0000 Sender = +447XXXXXXXXX
The evolution of mobile hardware manufacturing
We are building a phone, so hardware is an important part of the process. In our last blog post we talked a bit about researching hardware manufacturing partners. Since we are not building yet-another Qualcomm SOC based phone, but starting from scratch, we are working to narrow down all the design choices and fabrication partners in the coming months. This additional research phase has everything to do with how the mobile phone hardware market has evolved in the past years and I want to share how this all works with you.
In the early days of smartphones, a common case was that the main CPU was separated from the cellular baseband modem and that the cellular modem would run its own firmware when implementing all of the necessary protocols that operate the radio interface—at first it was GSM, then UMTS (3G) and finally LTE (4G). These protocols and the handling of the radio interface have become so complex that the necessary computational power for handling this as well as the firmware sizes have grown over time. Current 3G/4G modems include a firmware of 60 or more megabytes are becoming more common. It did not take long before storing this firmware became an issue as well as at run time since this requires significant increases of RAM usage.
Smartphones usually have a second CPU core for the main operating system which also runs the phone applications and interacts with the users. This means that your device must have two RAM systems as well, one for the baseband and one for the host CPU. This also means you need two storages for firmware, one for the host CPU and one for the baseband. As you may imagine, getting all of these components working together in a form factor small enough to fit into someone’s hand takes a lot of development and manufacturing resources.
The advent of cheap smartphones
There is extreme pressure about the cost of smartphones. In today’s commodity market, we see simple smartphones starting at prices less than $100 USD.
The introduction of combined chips, with radio baseband plus host CPU on one silicon die inside one chip, massively reduced costs. This allows the host CPU and baseband to share RAM and storage. Since the radio can be made in the same silicon process as the host CPU, and both can be placed in a single chip package, we see substantial cost reduction in the semiconductor manufacturing as well as the cost of manufacturing the device. This saves you from having to use a second large chip for the radio itself, an extra flash chip for its firmware, and possibly an extra RAM chip for its operation. This does not only reduce the Bill of Materials (BOM), but also PCB space, and it enables the creation of even smaller and thinner devices. Today we see many big companies offer these types of combined chipsets—such as Qualcomm, Broadcom, and Mediatek to name a few.
These chips caused a big shift in the mobile baseband modem market. Formerly it was common to find discrete baseband modems on the market that were applicable for mobile battery powered handsets like the one we are developing. But since the rise of the combined chipsets, the need for separated modems has dropped to a level that does not justify their development as much. You can still find modem modules and cards but these modules are usually targeted for M2M (machine to machine) communication with only limited data rates and most of them do not have audio/voice functions. They usually come in pretty large cards, such as the miniPCIe or M.2. For us this means that our choice of separated baseband modems suitable for a phone is narrowed.
What this means for OEM, ODM or Build it Yourself
All of this consolidation has an impact on hardware manufacturers and our choices. Pretty much all current smartphone designs by OEM/ODM manufacturers are based on the combined chipset types; this is all they know and it is where they have expertise. Almost no one is making phones with separated basebands anymore, and the ones who do are not OEMs nor ODMs. The options are further limited by our requirement not to include any proprietary firmware on our host CPU (which we wrote about before): most fabricators are unfamiliar with i.MX 6 or i.MX 8 and do not want to risk a development based on it, which narrows our hardware design and manufacturing partners to a much smaller list.
However, we have some promising partners that we will continue to evaluate, and we are confident that we are going to be able to design and manufacture the Librem 5 as we originally specified. We just wanted to share with you why making this particular hardware is so challenging and why our team is the best one to execute on this design. To continue to discuss with some of the manufacturers and providers, Purism will visit Embedded World, one of the world’s largest embedded electronics trade shows, in Nürnberg (Germany) in the beginning of March. And, as usual, we will continue to keep you updated on our progress!
Good news with our existing evaluation boards
We have been patiently waiting for the i.MX 8M to become available, all according to the forecast timeline from NXP. In the meantime, we have started developing software using the i.MX 6 QuadPlus board from Boundary Devices, specifically the NITROGEN6_MAX (Nit6Qp_MAX) since it is the closest we get to production devices before NXP releases the i.MX 8M. We have a Debian Testing based image running as a testbed on these boards while the PureOS team is preparing to build PureOS for ARM and ARM64 in special.
On these evaluation boards we have all the interfaces that we need for software development:
Video input and output
USB for input devices
Serial console and a miniPCIe socket with SIM card connected for attaching a mobile modem
At the moment, we are using a Sierra Wireless MC7455 LTE miniPCIe modem card for development, which uses a Qualcomm MDM9230 baseband modem chip. This card is basically a USB device in a mPCIe form factor, i.e. we do not actually use the PCIe interface.
An extremely nice display to our kits using an HDMI-to-MIPI adapter board. The display is a 5.5″ AMOLED display with full-HD resolution with the native orientation as portrait mode.
This hardware setup allows us to start a lot of the software development work now to ensure our development continues in parallel until we have the i.MX 8M based hardware in hand.
Lately, news headlines have been packed with discussions about critical CPU bugs which are not only found in Intel CPUs, but also partially in AMD CPUs and some ARM cores. At the same time, some of our backers have voiced concerns about the future of NXP in light of a potential acquisition by Qualcomm. Therefore you might be wondering, “Will the Librem 5 be affected by these bugs too?” and “will the Purism team get the i.MX 8 chips as planned?”, so let’s address those questions now.
Not affected by Spectre/Meltdown
At the moment we are pretty confident that we will be using one of NXP’s new i.MX 8 family of CPUs/SOCs for the Librem 5 phone. More specifically we are looking at the i.MX 8M which features four ARM Cortex A53 cores. According to ARM, these cores are not affected by the issues now known as Spectre or Meltdown, which ARM’s announcement summarizes in their security update bulletin.
So for the moment we are pretty sure that the Librem 5 phone will not be affected, however we will continue to keep an eye on the situation since more information about these bugs is surfacing regularly. In this respect we can also happily report that we have a new consultant assisting our team in security questions concerning hardware-aided security as well as questions like “is the phone’s CPU affected by Spectre/Meltdown or not”.
Qualcomm possibly buying NXP: not a concern
For quite some time there have been rumors that Qualcomm might have an interest in acquiring NXP. Since we will be using an NXP chip as the main CPU, specifically one of the i.MX 8 family, we are well aware of this development and are watching it closely.
Qualcomm is an industry leader for high volume consumer electronics whereas NXP targets lower volume industrial customers. This results in pretty different approaches concerning support, especially for free software. Where NXP traditionally is pretty open with specifications, Qualcomm is rather hard to get information from. This is very well reflected by the Linux kernel support for the respective chips. The question is how would it affect continued free software support and availability of information on NXP SOCs if Qualcomm acquires NXP?
First, it is unlikely that this deal will happen at all. Qualcomm had a pretty bad financial year in 2017 so they might not be in the financial position to buy another company. Second, there is a rumor that Broadcom might acquire Qualcomm first. Third, international monopoly control organizations are still investigating if they can allow such a merger at all. Just a few days ago the EU monopoly control agreed to allow the merge but with substantial constraints, for example Qualcomm would have to license several patents free of charge, etc. Finally, there are industry obligations that NXP cannot drop easily: the way NXP works with small and medium sized customers is a cornerstone of many products and customers; changing this would severely hamper all of those businesses involved, and these changes might cause bad reputation, bad marketing and loss of market share.
So all in all, this merger is not really likely to happen soon and there would probably not be changes for existing products like the i.MX 8 family. If the merger happens it might affect future/unreleased products.
In addition to working on obtaining i.MX6QuadPlus development boards to be able to work properly, the phone team is also intensively researching and evaluating software that we will base our development efforts on during the next few months. We are well aware of the huge amount of work ahead of us and the great responsibility that we have committed to. As part of this research, we reached out to the GNOME human interface design team with whom we began discussions on design as well as implementation. For example, we started to implement a proof of concept widget that would make it much easier to adapt existing desktop applications to a phone or even other style of user interface. What we would like to achieve is a convergence of devices so that a single application can adapt to the user interface it is currently being used with. This is still a long way ahead of us, but we are working on it now. We will meet up also with some GNOME team members at FOSDEM to discuss possible development and design goals as well as collaboration possibilities.
The mobile development work for KDE/Plasma will primarily be performed by their own human interface teams. Purism will be supporting their efforts through supplying hardware and documentation about our phone development progress as it is happening. This will help ensure that that KDE/Plasma will function properly on the Librem 5 right from the factory. To understand better where we’re headed with GNOME and KDE together, take a look at this blog post.
We also reviewed and evaluated compositing managers and desktop shells that we could use for a phone UI. We aim to use only Wayland, trying to get rid of as much X11 legacy as we possibly can, for performance issues and for better security. From our discussions with GNOME maintainers of existing compositors and shells, we may be better off igniting a new compositor (upstreamed and backed by GNOME) in order to avoid the X11 baggage.
On the application and middleware side of things, we have generated an impressive list of applications we could start to modify for the phone to reach the campaign goals and we have further narrowed down middleware stacks. We are still evaluating so I do not want to go into too much detail here, in order not set any expectation. We will of course talk about this in more detail in some later blog posts.
Meeting with Chip Makers
As the CPU choice is pretty clear lately, we are going to have a meeting with NXP and some other chip makers at Embedded World in Nürnberg, Germany, at the end of the month. This is very encouraging since we worked for months on getting a direct contact to NXP, which we now finally have and who we will meet in person at the conference. The search for design and manufacturing partners is taking longer than expected though. Our own hardware engineering team together with the software team, especially our low level and kernel engineers, started to create a hardware BOM (bill of material) and also a “floor plan” for a potential PCB (printed circuit board) layout, but it turns out that many manufacturers are reluctant to work with the i.MX 8M since it is a new CPU/SOC. We have, however, some promising leads and good contacts so we will work on that.
Purism Librem 5 team members attending FOSDEM
By the way, many Purism staff members will be at FOSDEM this week-end, on the 3rd and 4th of February. In addition to the design and marketing team, PureOS and Librem 5 team members will be there and we would love to get in touch with you! Purism representatives dedicated to answering your questions will be wearing this polo shirt so you can easily recognize them:
First, let me apologize for the silence. It was not because we went into hibernation for the winter, but because we were so busy in the initial preparation and planning of a totally new product while simultaneously orienting an entirely new development team. Since we are more settled into place now, we want to change this pattern of silence and provide regular updates. Purism will be giving weekly news update posts regarding the Librem 5 phone project, alternating progress reports on two fronts:
from the technology development point of view (the hardware, kernel, OS, etc.);
from the design department (UI+UX), and our collaboration with GNOME and KDE.
To kickoff this new update process, today’s post will discuss the organizational and technological progress of the Librem 5 project since November 2017.
Just after our successful pre-order crowdfunding campaign (by the way, thank you to all of the backers!) we started to reach out to people who had applied for jobs related to the Librem 5 project. We had well over 100 applicants who showed great passion for the project and had excellent resumes.
Our applicants came from all over the world with some of the most diverse backgrounds I have ever seen. Todd Weaver (CEO) and myself did more than 80 interviews with applicants over a two weeks period. In the end, we had to narrow down to 15 people that we would make offers to; it was with great regret that we had to turn down so many stellar applicants, but we had to make decisions in a timely fashion and unfortunately the budget isn’t unlimited. During the weeks that followed, we negotiated terms with our proposed team members and started to roll new people into the team (with all that involves in an organizational setting). All of the new team members are now on board as of January 2018. They are not yet shown on our team page, but we will add them soon and make an announcement to present all the individuals who have recently joined our team.
As amazing as our community is, we also received applications from individuals who are so enthusiastic about our project that they want to help us as volunteers! We will reach out to them shortly, now that the core team is in place and settled.
There are so many people to thank for the successful jump start of our phone development project! It was amazing for us to see how much energy and interest we were able to spark with our project. We want to give a big thank you to everyone for reaching out to us and we really appreciate every idea and applicant.
CPU / System On Chip
During our early phase we used a NXP i.MX6 SOC (System On Chip) to begin software evaluation, and the results were pretty promising. This was why we listed the i.MX6 in the campaign description. The most important feature of the i.MX6 was that it is one of only a handful of SOCs supported by a highly functional free software GPU driver set, the Etnaviv driver. The Etnaviv driver has been included in the Linux mainline kernel for quite some time and the matching MESA support has evolved nicely. Briefly after our announcement we were contacted by one of the key driving forces behind the Etnaviv development effort which provides us with valuable insight in to this complex topic.
Further work with the i.MX6 showed us that it still uses quite a lot of power so when put under load it would drain a battery quickly, as well as warm up the device.
NXP had been talking about a new family of SOCs, the i.MX8, which would feature a new silicon processor and updated architecture. The release of the i.MX8 had been continuously postponed. Nevertheless, once we realized that the i.MX6 might be too power hungry, the i.MX8 became appealing to us. Hardware prototype operations are always tricky because you have to plan for emerging technologies that you meld with existing parts or materials. Components from original manufacturers sometimes never get released, are discontinued or the availability from the factory grinds to a halt for reasons beyond our control. This is the function of engaging in prototype development so that we can suffer the slings and arrows for you to provide the customer the best possible end product. We have been in active communication with all of our suppliers preparing a development plan that is beneficial for all of us.
At CES in Las Vegas, NXP announced the product release dates for their new SOC, the i.MX8M, along with a set of documentation. This is currently the most likely candidate we will use in the Librem 5. We are very excited about this timely announcement! At Embedded World in Nürnberg, Germany, NXP will announce details and a roadmap. We will be attending and discuss with NXP directly about the i.MX8M for the Librem 5.
We have also decided to use AARCH64, a.k.a. “ARM64”, for the phone software builds as soon as we have i.MX8 hardware. A build server for building ARM64 is now in place and the PureOS development team is beginning to work with the Librem 5 development team on the build process. Adding a second architecture for the FSF endorsed PureOS—that will run on Librem laptops as well as the Librem 5 phone—is a major undertaking that will benefit all future Librem 5 phone development.
Prototype Display for Development Boards
Since the i.MX8 is still not yet easily available, and in order not to unnecessarily slow development progress, we need similar hardware to start developing software. We switched to an i.MX6 Quad Plus board which should provide similar speed for the GPU to what we will find in the i.MX8M. From our contact from the Etnaviv developers we know that they are heavily working on the i.MX8M support so we can expect that Etnaviv will be working on it within the year.
One of the big tasks of our software and design teams, working with our partners (GNOME, KDE, Matrix, Nextcloud, and Monero), will be to create a proper User Interface (UI) and User Experience (UX) for a phone screen. The challenges are that the screen will be between 5″ to 5.5″ diagonally with a resolution of up to full HD (1920×1080), and a functional touchscreen! The amazing teams developing GNOME and KDE/Plasma have already done a great job laying the groundwork technologies and setting up this kind of interface to build, develop, and test with. With such great partners and development teams we are confident that we can successfully integrate the freedom, privacy, and security of PureOS with phone hardware to provide a beautiful user experience.
To help with development, we are already in the process of sourcing components to attach 5.5″ full HD displays to our development boards. Our development boards are already booting a mainline kernel into a Wayland UI nicely. We are evaluating similar displays from several manufacturers. We found a supplier for a matching adapter logic board (HDMI to MIPI). Our hardware engineer has already designed an additional adapter for interfacing the display’s touchscreen so that we will realistically have a 5.5″ full HD screen with touch capability on our development boards.
Potential Manufacturing Sites
The overall plan is to have a custom device manufacturing process setup somewhere where we can manufacture our own devices. Since November of last year we have been intensively researching and evaluating potential manufacturing partners. So far we have been in contact with over 80 potential fabricators and are in the process of negotiating capabilities and terms. No decision has been made yet. We have some promising prospects from all over the world, including Asia, Europe and the USA, and we plan on visiting some of these sites in person possibly by the end of February or March.
Now that the development team is in place we will be reaching out to our partners. Our UI/UX design team along with phone dev team are working with the GNOME UI/UX team to develop a path forward for mobile interfaces. We will also reach out to others who have partnered with us during the campaign, such as the KDE/Plasma team, Matrix, Nextcloud, Monero and many more.
I hope that the fog has been lifted, and we have answered questions you might have or assuaged fears of our silence. We hope that you enjoyed this first dive into our development process. We here at Purism are all very excited about the Librem 5 phone project, as we are passionate about all of our products, with the phone holding a special place in our hearts and those of the Free Software community. That’s what makes us different from companies rolling out “yet another Android phone”, swapping color palettes or removing headphone jacks under the guise of “innovation”…
See you next week for more news on the Librem 5 project!
While most of you are probably excited about the possibilities of the recently announced “Librem 5” phone, today I am sharing a technical progress report about our existing laptops, particularly findings about getting coreboot to be “production-ready” on the Skylake-based Librem 13 and 15, where you will see one of the primary reasons we experienced a delay in shipping last month (and how we solved the issue).
TL;DR: Shortly we began shipping from inventory the coreboot port was considered done, but we found some weird SATA issues at the last minute, and those needed to be fixed before shipping those orders.
The bug was sometimes preventing booting any operating system, which is why it became a blocker for shipments.
I didn’t find the “perfect” fix yet, I simply worked around the problem; the workaround corrects the behavior without any major consequences for users, other than warnings showing up during boot with the Linux kernel, which allowed us to resume shipments.
Once I come up with the proper/perfect fix, an update will be made available for users to update their coreboot install post-facto. So, for now, do not worry if you see ATA errors during boot (or in dmesg) in your new Librem laptops shipped this summer: it is normal, harmless, and hopefully will be fixed soon.
On Thursday, we have revealed our plans to build the world’s first encrypted, free/libre and open platform smartphone that will empower users to protect their digital identity in an increasingly unsafe mobile world. This naturally comes after having announced the general availability and inventory of our Librem 13 and Librem 15 laptops in June this year. Our newest line of laptops are undergoing shipping after a short delay related to finishing our coreboot porting work (look forward to our technical update on this subject, to be published this Tuesday).
In preparation for the phone project, in addition to our regular work we have spent 18 months of R&D to test hardware specifications and engage with one of the largest phone fabricators, and have now reached the point where we are launching the crowdfunding campaign to gauge demand for the initial fabrication order and add the features most important to users.

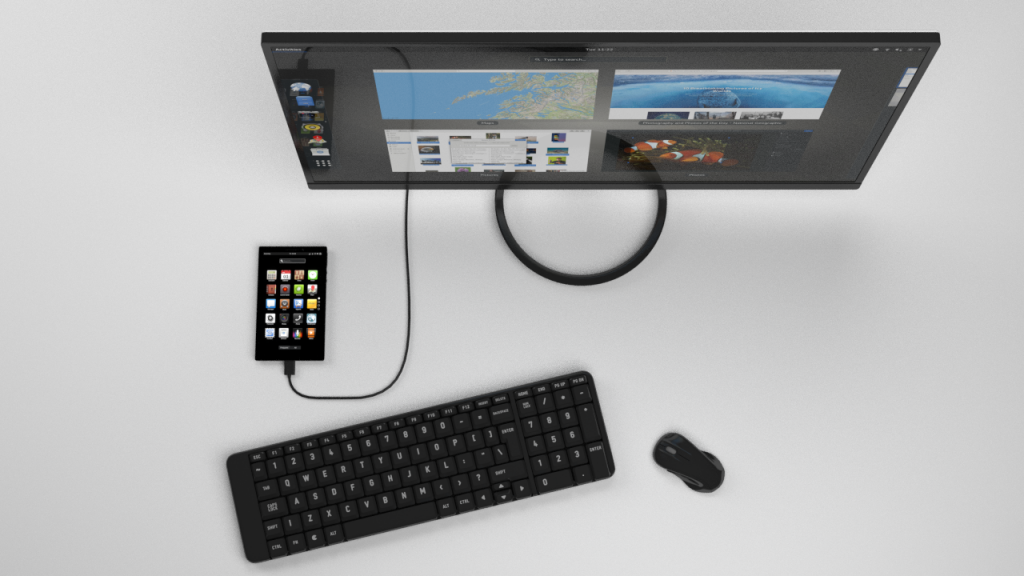

Enabling the next generation of cable-cutters, we are making the Librem 5 the first ever Matrix-powered smartphone, natively using end-to-end encrypted decentralized communication in its dialer and messaging app. We will also offer regular baseband functionality separated off from the CPU, and work towards the goal of freeing all components.
As increasing concern among Android and iOS users grow around personal data they give up through WiFi connections, application installations and basic location services, we hope to address those concerns by manufacturing phones that will operate with free/libre and open source software within the kernel, the operating system, and all software applications. We have built our reputation within the GNU/Linux community on creating laptops designed to specifically meet user concern about digital privacy, security, and software freedom.
Starting at $599—less than the cost of many popular smartphones—and featuring a bona fide GNU/Linux operating system (PureOS) instead of Android or iOS, the Librem 5 is intended to give users unprecedented control and security with features unavailable on any other mainstream smartphone, including:
Make encrypted calls that mask your phone number
Encrypt texts and emails
Set up VPN services for enhanced web browsing protection
Use the phone on any 2G/3G/4G, GSM, UMTS, or LTE network
Edit or develop on the source code, which will be made publicly available, as a community-oriented FLOSS project (not “read-only open-source”)
Run PureOS or most modern GNU+Linux distributions—not yet another Android-based phone!
Enable hardware kill switches for the camera, microphone, WiFi/Bluetooth and baseband
With the new batch of Librem 13 and Librem 15 this summer, we created our first ever “inventory” to shift from a purely build to order (preorders) model to a build to stock model. In other words, for the first time in our existence, we now have more laptops in stock than the amount of orders, which means new orders can be fulfilled in 7-10 days instead of taking months. We made a formal announcement about this a few days ago, and would like to take the time today to thank you, early supporters, for having made it possible for us to reach this milestone! As we finish working through our backlog and finalizing our coreboot port to correct some last minute bugs (more on this later), some users have already started receiving their Librems:
These new models ship with coreboot preloaded and the newest version of PureOS—featuring Wayland and GNOME 3 by default. We are, in fact, the first independent hardware manufacturer of brand new laptops to do this.
We are also uniquely positioned to ship with Skylake processors immune to the hyperthreading issue recently disclosed by OCaml developers, independently of whether or not you run PureOS on your Librem, as we have bundled the fix and rebuilt our coreboot images for the current inventory being shipped out from this week forward (those who have already received their Librems last week will be able to apply a BIOS update to fix the issue on their machines). Think about this for a second: there are no other manufacturers of brand new laptops in the world who can provide such a timely BIOS update, while shipping, within 48 hours of a CPU issue being publicly disclosed by a third-party mailing list.
Get them while they’re hot
We are expecting to sell through this first inventory fairly quickly. For those who did not want to preorder and wanted to buy only when inventory becomes available, this is your chance—don’t miss it! Afterwards, we will manufacture increasingly frequent batches until we reach cruising speed and have a tightly controlled right-on-time rolling inventory to ship from.
For the past few weeks, the new Librem 13 and 15 have been undergoing stage 1 production with our case modifications and silkscreening. We had some back and forth between us and the printer to finally have clearly identified killswitches:
…and our certification marks and model identification on the underside:
At first the screenprinters had trouble with the font we’re using (as you can see above, if you have a keen eye), but we got that corrected as you can see further below. We were not so lucky with the keyboard’s “Purism logo” key as the aspect ratio was squashed a little bit by the backlit keyboard supplier and we found out too late, but at this stage the #1 priority is getting these machines delivered to you as fast as possible, so we’re hoping you don’t mind the Purism rectangle logo being in “ultra-wide” cinema format just this once 😉
As the laptops are now at stage 2 production, we have some teaser photos of the completed case work. These were shot a bit hurriedly, the lighting and compression is not flattering, but this at least provides a rough idea. We’ll take the time to shoot proper studio photos when the first new wave of shipments is mailed out in June.
Here is what the underside of the Librem 13 looks like:
Here are the silkscreened killswitch labels:
Note: the IPS display panels we source for the Librems are matte (as they should be!) The reason why the screen in the picture above seems reflective is that a glossy protective film is applied to protect the laptops during shipping.
For the curious among you, here is a bare view of the case’s interior, with only the multitouch trackpad and backlit keyboard (underneath the black electrical isolating layer) installed:
With this, we are confident that we will be able to begin shipping out finalized units to customers in roughly two weeks. Afterwards, we will have stock on hand allowing new orders to be fulfilled within a week. If you were reluctant to preorder and were were waiting for the presence of rapidly-shipping stock to purchase a Librem, this will be a deal changer for you.
Let’s recap recent progress with a summary of where we stand and where we’re going next on the “operations” front.
We have begun production of the two new revisions of Librem laptops. As we narrowed down on component choices and successfully raised additional funds, we have now made great steps towards our “zero outstanding orders” milestone and our goal of creating our first inventory to ship future orders from.
Last month, we ordered a batch of supplies to begin production of the new Librem 13 “v2” units. We have also tested and evaluated three prototype units, the latest of which we will use to extend our coreboot work.
Two weeks ago, we also ordered parts for the new Librem 15 “v3” units. So far we have evaluated one prototype unit for this new batch (which will also be used for our coreboot work), and will evaluate a second one soon.
We are currently working to leverage investment to make the Librem 11 batch order happen sooner and create an inventory directly; we will let you know of any progress on that front. In the meantime, we thank you for your patience. And please spread the word about the Librem 11 to those around you looking for a nice security-oriented and freedom-respecting convertible tablet with stylus support (especially interesting for visual artists who want to use the plethora of free creative tools such as MyPaint, Krita, Inkscape, GIMP, etc.)! The more people know about it, the sooner we should be able to put it into production.
Revised products specifications
For the upcoming Librem 13 v2 and the Librem 15 v3, we evaluated various prototypes, including different cases and keyboard models, alongside various possible CPU, GPU, RAM and storage combinations. With the newer motherboards, we aimed to keep the same flexibility in terms of storage: one M.2 slot and one standard SATA slot. As usual, the RAM and SSDs are all user-replaceable, not soldered.
The Librem 13 gets a whole slew of improvements for version 2:
A newer i5 processor, using the 14 nanometers lithography of the Skylake generation, bringing additional performance and power savings over previous generations
A backlit keyboard (the most often requested feature)
Newer Intel graphics as part of the Skylake chipset
One USB 3.0 “type C” connector
A much better trackpad (sourced from Elantech instead of BYD), which works better out of the box. It supports vertical and horizontal two-finger scrolling, allows changing workspaces with a simple four-finger swipe gesture, has smoother scrolling, and various multitouch gestures (dependent on applications support).
Those who have ordered the Librem 15 also get the free update to Skylake, newer graphics, DDR4, and improved trackpad. The Librem 15 already had a backlit keyboard and USB-C.
As you can see, when you pre-order a Purism device, you don’t need to worry about the specs becoming outdated by the time of production & delivery. For all our products, we strike a balance as per our manufacturing & sourcing approach, yet strive to stay close to the latest technology out there. We aim to please our supporters by bundling these updates at no additional cost whenever possible.
Upgrading from the Broadwell microarchitecture for this round, we chose to go with Skylake (rather than Kabylake) in order to service orders more quickly without bringing on delays in supplies or testing. To provide the best user experience, we prefer to test more thoroughly before moving on to a new chipset (for instance, we’ll be able to provide coreboot support more quickly with Skylake as part of our current roadmap). We expect to upgrade the chipsets/microachitecture again for the next production run (planned for the second half of 2017 once we complete this batch), which will involve a revised motherboard design, as we will also be adding new hardware features in prevision of full support for Heads.
The power of the Dark Side comes as a duo
We chose to keep the same overall chassis, although the location of Librem 15’s killswitches will be different this time (all on the hinge cover, like the Librem 13).
A notable aesthetic improvement for the Librem 15 v3 is that it will be anodized black just like the Librem 13. The temptation of the Dark Side was strong! Here you can see an anodized aluminium extrusion sample of the Librem 15 v3, next to an existing Librem 13 v1:
As we are beginning to have quite a bit of hardware revisions and models to keep track of, the laptops will now also feature some subtle branding underneath the backplate for model identification and to show the appropriate certification marks (we are FCC and CE certified). The publicly visible parts such as the screen bezel, palmrests, or the back of the screen lid, all remain unbranded.
Better power connectors
We are now sourcing power supplies with L-shaped coaxial connectors, so they keep a low profile when plugged into the side of your Librem:
This is particularly useful if you like to sit cross-legged with your laptop on a sofa, for example! (or for those who like to meditate with a computer on their lap)
We are well on our way to provide a great new set of laptops this summer. We should be receiving the final components around the end of May, at which point we will do the final assembly and shipping throughout June. We will then be able to celebrate having cleared all the existing Librem 13 and 15 orders (including the recent big spike in orders). After that point, we will be able to ship within days and weeks (not months), which will be a huge relief for everybody looking to buy a Librem “in a pinch”. We hope you’re as excited as we are about that!
As always, thank you for your support, and feel free to contact us with your thoughts and encouragements, or to spread the good news around you!
Edit: post updated to reflect the processor models available as of June 2017. For the time being, the Librem 13 will still feature an i5 processor instead of the i7, albeit with the newer Skylake chipset.
This year, we’re attending and sponsoring LibrePlanet, which is being held this week-end in Boston. Todd and I arrived one day early, as we wanted to seize the opportunity to spend a full day coworking to align our plans (regarding communications, product design and supply chain management), confirm product specifications, and test some new prototypes we have on hand. Todd recently (yesterday!) received sample parts and prototype units from suppliers, so we spent some time checking the aesthetic and functional aspect of the next revision of the Librem 13 (v2) and Librem 15 (v3), including the chips, killswitches, and removable components.
I also brought with me some older units I had gathered from others, including the Librem 11 prototype (which we bricked during testing) and the previous revision of the Librem 15.
Oh, “But what is that mysterious black plate in the center of the table”, you ask? Well, that’s one of the sample parts our suppliers sent us: the upper aluminium plate of the upcoming Librem 15 v3, which will be anodized black like our lovely Librem 13.
Here you can see Todd’s Librem 13 on the left (which looks brand new even after 2 years of intensive use) and the Librem 15 v3’s anodized aluminium extrusion sample on the right (resting on top of the old Librem 15 production model for comparison).
We chose a matte finish to avoid fingerprints from showing up (disclaimer: if you’re worried about someone lifting your invisible fingerprints from your laptop, you probably want to type with gloves like this guy–except you’ll be way cooler, because you’ll be using a Librem instead of some old plastic junk 😉
We’re still finalizing details when it comes to the final specs, but from the looks of it, those with outstanding orders may benefit from a free upgrade to a newer generation of CPU and graphic chipsets, in addition to the black aluminium chassis.
Today we have placed a batch order through our supply chain for the Librem 15 v3, so we hope to provide you with an update on specifications and estimates soon. In the meantime, if any of you are attending LibrePlanet, we look forward to meeting you this week-end!
